圆形堆取料机

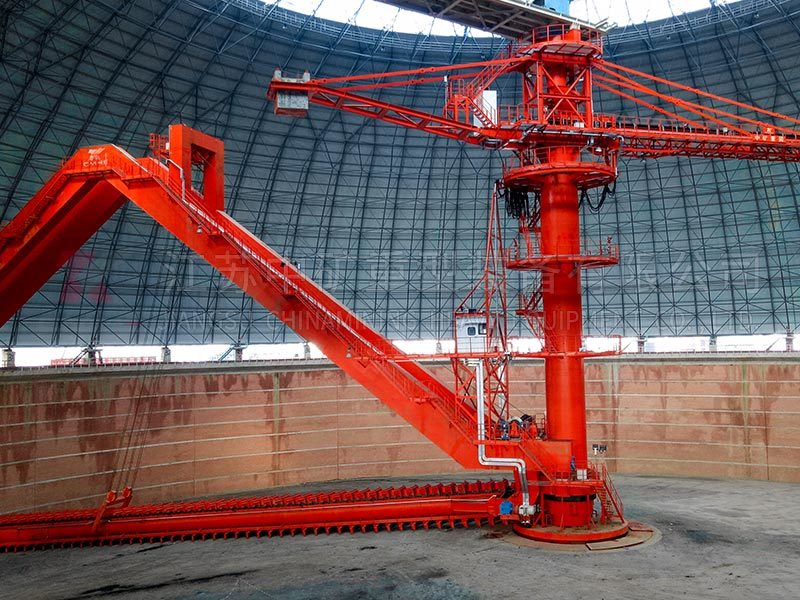

圆形料场堆取料机是悬臂堆料机与刮板取料机集于一体设备,是一种大型、环保、连续、 高效的散料装卸机械,实用于码头、钢铁厂、水泥厂、大型火力发电厂和矿山等,可以装卸铁矿石(砂)、煤炭、砂子、石灰石、水泥等,圆形堆取料机被半球形网架外壳所笼罩,堆取料作业时集中于定心旋转的回转范围内,不受台风等恶劣天气的影响,同时产生的扬尘范围小,又被拘囿在固定的区域内,所以,它很好地解决了常规的敞开式条形煤场堆取料机作业时所产生的大量扬尘对周边环境造成的大范围污染,既美观又环保,综合效益高,具备储料量大、占地面积小、场地利用率高、安全可靠性高、环保效益好等优点。取料和堆料作业时具备两个层次分明的堆料回转机构和取料回转机构,使堆料机和取料机形成两套互不干涉、相对独立的运行系统,实现同时进行堆料和取料作业。我司目前有圆形堆取料机轨道直45m-120m各种规格。
圆形堆取料机分臂式圆形堆取料机、门式圆形堆取料机、桥式斗轮圆形堆取料机、桥式刮板圆形堆取料机主要由:堆料钢结构、堆料皮带机、堆料回转机构、中心立柱、中心漏斗、悬臂钢结构、取料回转、取料行走机构、取料俯仰机构、刮板取料机、附属结构、电气司机室、电气系统、液压系统、润滑装置、除尘系统等组成。
堆料机为水平悬臂式,以中心柱为中心回转堆料,物料通过堆料胶带输送机头部卸料,直接堆向料场。堆料机回转一定角度进行斜坡堆料直至堆成环形料堆,堆料方式为人字形和倾斜层组合的连续复合形堆料。
取料机主要由门架钢结构(回转钢结构)、刮板取料机、取料俯仰机构、取料回转平台和取料行走机构(取料回转驱动机构)等组成.门架式取料机结构型式合理,门架的大部分重量由挡料墙承受,使得中心柱受力状态明显改善,运行更平稳,取料方式为全端面阶梯式取料。
Round yard is stacker reclaimer cantilever stacker and bridge type scraper reclaimer equipment at an organic whole, our company have the circular material piling and taking machine orbit straight 45 m - 120 - m kinds of specifications.
Circular material piling and taking machine is mainly composed of cantilever pile machine, scraper reclaimer, main girder, beam device, material scraper device, the center column device, driver room, electrical room, hydraulic system and electric control system, etc. Stacking way for chevron and sloping layer combination of continuous composite material piling and taking way is expected to take for full face.
Decorate material by the center top material belt conveyor to cantilever pile machine, according to the "continuous" composite method of stacking. Girder at one end of the support on the center column, the other end of the support beam on beam cars. Scraper feeding mechanism is installed below the main girder, feeding way is take for full face. Material rake supports in girder on the side of the square, is expected to rake in the tower is located in the main girder. Is expected to rake drive hydraulic transmission. Reclaimer tensioning for hydraulic tensioning.
技术参数表 Technical Date
规格型号 |
输送介质 |
轨道直径(m) |
堆料能力(t/h) |
取料能力(t/h) |
|
堆料机 |
取料机 |
装机功率(kw) |
|
带宽 |
回转半径(m) |
变频行走速度(m/min) |
链速 |
||||||
YDQ45/150/200 |
煤,石灰石 |
45 |
200 |
150 |
800 |
13.5 |
0.5-8 |
0.0041-0.041 |
105 |
YDQ60/300/500 |
煤,石灰石 |
60 |
500 |
300 |
1000 |
18 |
0.5-8 |
0.006-0.06 |
130 |
YDQ65/300/600 |
煤,石灰石 |
65 |
600 |
300 |
1000 |
19.5 |
0.5-8 |
0.006-0.06 |
130 |
YDQ80/500/800 |
石灰石 |
80 |
800 |
500 |
1000 |
24 |
0.5-12 |
0.006-0.06 |
175 |
YDQ90/500/900 |
石灰石 |
90 |
900 |
500 |
1000 |
27 |
0.5-12 |
0.0047-0.047 |
223 |
YDQ90/600/1000 |
石灰石 |
90 |
1000 |
600 |
1000 |
27 |
0.5-15 |
0.0047-0.047 |
230 |
YDQ95/600/1200 |
石灰石 |
95 |
1200 |
600 |
1200 |
28.5 |
0.5-15 |
0.0047-0.047 |
260 |
YDQ100/800/1500 |
石灰石 |
100 |
1500 |
800 |
1400 |
30 |
0.5-15 |
0.0047-0.047 |
300 |
YDQ1000/10000 |
煤 |
120 |
1000 |
1000 |
1200 |
36.5 |
0.5-15 |
0.0047-0.05 |
340 |
