Sector valve/electro-hydraulic sector gate

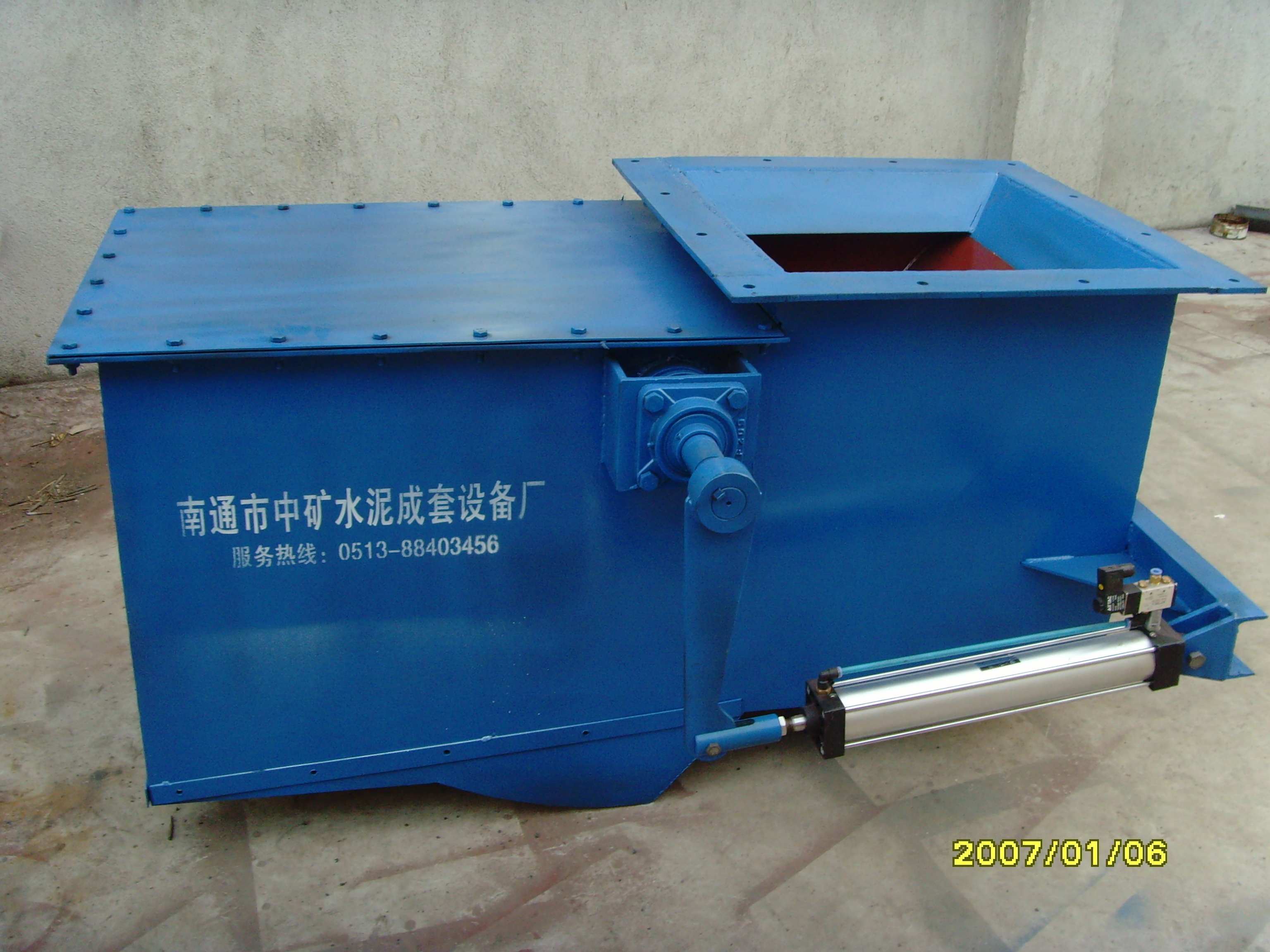

Fan shaped gates are widely used in industries such as building materials, metallurgy, mining, chemical engineering, and power, and are discharge control devices for various types of material dropping systems. According to the needs of the building materials industry, it is an ideal unloading device for dust removal equipment in cement clinker warehouses. This fan-shaped valve is equipped with a dust cover at the discharge port to prevent dust from flying; Adopting an electro-hydraulic push rod as the power source, replacing cylinder transmission, saving engineering investment costs; The valve body of the fan-shaped valve adopts a stepped structure to reduce material flow impact; A fence structure lining plate is laid on the key parts of the valve body of the fan-shaped valve, reducing direct wear of the lining plate.
Structural characteristics
The fan-shaped gate has a simple structure and is welded from steel plates, with flexible opening and no stuck waiting points.
Performance parameter
|
Applicable Medium |
Temperature |
Medium flow rate |
|
Grain solid, granular material, powder material |
≤300℃ |
≤28m/s |
Structural characteristics
The electro-hydraulic fan-shaped gate is equipped with a dust cover at the discharge port to prevent dust from flying; Adopting an electro-hydraulic push rod as the power source, replacing the cylinder transmission, saving engineering investment costs; The valve body of the electro-hydraulic sector gate adopts a stepped structure to reduce material flow impact; The key parts of the valve body are equipped with a fence structure to grind the lining plate, reducing direct wear of the lining plate.
Main performance parameters
|
（m3/h）Ash discharge amount |
6~80 |
|
Temperature |
≤150 |
|
Applicable Medium |
Dry dust |
TDSZ type electro-hydraulic sector gate is an ideal discharge device for dust removal equipment at the bottom of cement clinker silos according to the needs of the building materials industry
Characteristics:
TDSZ type electro-hydraulic fan-shaped gate is equipped with a dust cover at the discharge port to avoid dust flying. The electric hydraulic push rod is used as the power source to replace the cylinder transmission, saving engineering investment costs. The valve body adopts a stepped structure to reduce material flow impact. The key parts of the valve body are lined with a fence structure lining plate, reducing direct wear of the lining plate.
Performance parameter:
|
Model |
(mm) Dimensions |
电液推杆型号 Model of electro-hydraulic push rod |
功率 Power KW |
|||||||||||||||||||
|
W |
A |
A1 |
A2 |
B |
B1 |
B2 |
L |
L1 |
L2 |
L3 |
H |
H1 |
H2 |
H3 |
H4 |
H5 |
P |
N×a |
n×Φ |
|||
|
TDSZ-30 |
300 |
400 |
120 |
150 |
350 |
470 |
300 |
300 |
800 |
1175 |
600 |
380 |
429 |
170 |
60 |
340 |
150 |
280 |
2×175 |
8-18 |
DYZ700-280/110-P |
1.1 |
|
TDSZ-40 |
400 |
500 |
220 |
250 |
400 |
520 |
400 |
350 |
900 |
1175 |
650 |
540 |
429 |
170 |
60 |
480 |
140 |
280 |
3×150 |
12-18 |
DYTZ700-280/110-P |
1.5 |
|
TDSZ-50 |
500 |
626 |
320 |
350 |
450 |
570 |
500 |
400 |
1050 |
1220 |
737 |
680 |
513 |
190 |
70 |
610 |
120 |
350 |
4×140 |
16-18 |
DYTZ700-300/110-P |
1.5 |
|
TDSZ-60 |
600 |
726 |
360 |
390 |
500 |
620 |
600 |
450 |
1200 |
1220 |
837 |
750 |
513 |
190 |
70 |
670 |
150 |
350 |
4×165 |
16-18 |
DYTZ700-300/110-P |
2.2 |
|
TDSZ-70 |
700 |
840 |
460 |
490 |
550 |
670 |
700 |
500 |
1400 |
1340 |
980 |
900 |
560 |
190 |
80 |
820 |
150 |
400 |
5×154 |
20-22 |
DYTZ700-350/110-P |
2.2 |
|
TDSZ-80 |
800 |
940 |
560 |
590 |
600 |
720 |
800 |
550 |
1550 |
1340 |
1080 |
1050 |
560 |
190 |
80 |
950 |
150 |
400 |
5×174 |
20-22 |
DYTZ700-350/110-P |
2.2 |
