XL/XS洗砂机
产品描述

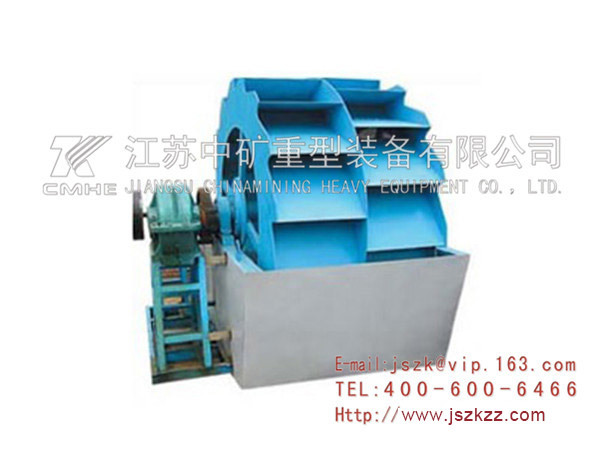

XL/XS洗砂机产品适用于建筑工地、砂石厂、混凝土大坝、玻璃厂石英砂及油井回填用压力砂的 洗选、分级和脱水。XL砂石洗选机按15°倾斜布置,水槽下部由三边堰板包围形成沉淀池,螺旋头部 没入沉淀池内,螺旋由电动机经减速器驱动连续旋转,由沉淀池底部多孔板给入清洗水。XS轮式洗砂 机经电动机、减速机的传动,驱动水槽中的叶轮不停地在水槽中作圆周性转动,从而将水槽中的矿石或矿渣颗粒物料在水中搅拌、翻转、淘洗并使受水物料在叶轮中脱水后排出。
XL/XS Screw sand washer is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This sand washer adopts inclination of 150,under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool. the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool. XS Wheel type Sand washer is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry. water conservation and hydropower. cement station and so on.
技术参数表|Technical Date
XL螺旋式洗砂机系列
型号 |
螺旋直径 (mm) |
水槽长度 (mm) |
入选粒度 (mm) |
处理能力(t/h) |
螺旋转速 (r/min)n) |
电机功率 (kw) |
耗水量 (t/h) |
外形尺寸 (mm) |
重量 (t) |
XL915 |
915 |
7585 |
≤10 |
100 |
21 |
11 |
10-80 |
8500×2810×3600 |
6.27 |
2XL915 |
915 |
7585 |
≤10 |
200 |
21 |
2×11 |
20-160 |
8420×3765×3960 |
11.11 |
XL1115 |
1115 |
9782 |
≤10 |
175 |
17 |
15 |
20-150 |
10970×3945×4720 |
10.18 |
2XL1115 |
1115 |
9782 |
≤10 |
350 |
17 |
2×15 |
40-300 |
10970×5250×4720 |
17.94 |
XS轮式洗砂机系列
型号 |
螺旋直径(mm) |
水槽长度(mm) |
入选粒度(mm) |
处理能力(t/h) |
螺旋转速(r/min) |
电机功率(kw) |
耗水量 (t/h) |
外形尺寸(mm) |
重量(t) |
XS2610 |
2600 |
3220 |
≤10 |
50 |
0.8 |
5.5 |
14-4.5 |
3220×2125×2670 |
2.68 |
XS3016 |
3000 |
3810 |
≤10 |
80 |
0.8 |
15 |
10-20 |
3800×2686×3085 |
3.26 |
