PE颚式破碎机
关键词:
重型机械 | 电站辅机 | 工程总包 | 矿山机械 | 环保设备
所属分类:
服务热线:

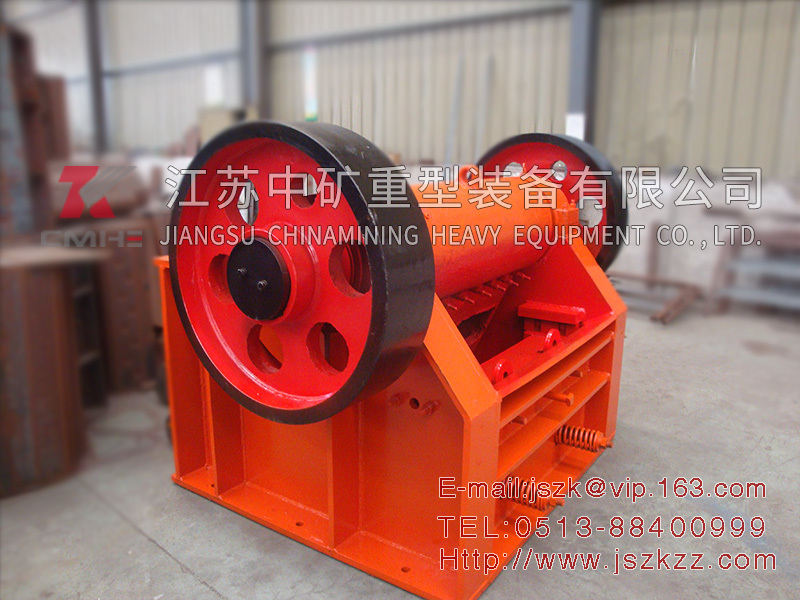

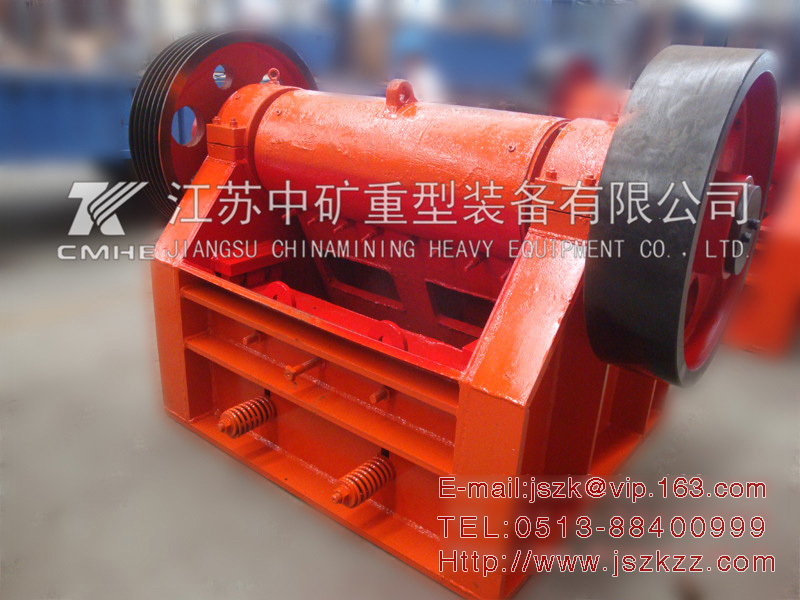

PE颚式破碎机
PE系列颚式破碎机采用高锰钢材料制造,重量轻,强度高,能耗低,大大减少设备运行成本,而且进料粒度大,产品粒度均匀。该产品低转速,高稳定性,大产量,低运行成本,充分保证了矿山、冶金、建材、化工等行业客户的破碎需求。
PE jaw crusher adopts high manganese wear-resistant steel. It has the advantages of light weight, high strength and stiffness, and low energy consumption, It not only greatly reduces the operating costs of equipment. but also the feeding particle size is large, and product particle size is uniform.
With is low revolution speed, high stability, large output, low operation cost, and fully guarantee the mining, metallurgy, building materials, water conservancy, chemical industry and other industries crushing needs of clients.
产品描述 Product Features
■经典的设计、制造技术及材料、经久耐用
■恰当的腔型设计
■排料口调整方便灵活
■可供选择的多种颚板
■选用最耐用的轴承
■高品质铸钢动颚总成
The most classical design, the best manufacturing technique and materials. durable The providential cavity design The adjustment of discharge opening is convenient and flexible
A variety of jaws are optional Select the most durable bearings High-quality cast steel movable jaw assembly
技术参数表 Technical Date
型号 |
进料口尺寸(mm) |
最大进料粒度(mm) |
出料口调整范围(mm) |
生产能力(t/h) |
功率 (kw) |
重量 (t) |
PE-150×250 |
150×250 |
130 |
10-40 |
0.96-4.8 |
5.5 |
0.81 |
PE-250×400 |
250×400 |
210 |
20-80 |
5-21 |
15 |
2.8 |
PE-400×600 |
400×600 |
340 |
40-100 |
16-64 |
30 |
6.5 |
PE-500×750 |
500×750 |
425 |
50-100 |
45-100 |
55 |
10.3 |
PE-600×900 |
600×900 |
500 |
65-160 |
48-120 |
55/75 |
15.5 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
115-208 |
110 |
27.02 |
PE-800×1060 |
800×1060 |
650 |
100-200 |
136-228 |
110 |
28.4 |
PE-870×1060 |
870×1060 |
670 |
200-260 |
290-336 |
110 |
30.5 |
PE-900×1200 |
900×1200 |
750 |
100-200 |
144-304 |
132 |
50 |
PE-1000×1200 |
1000×1200 |
850 |
195-265 |
315-342 |
132 |
50.6 |
PE-1200×1500 |
1200×1500 |
950 |
150-350 |
300-800 |
220 |
83 |
PE-1500×1800 |
1500×1800 |
1200 |
220-350 |
450-1000 |
355 |
122 |
PEX-150×750 |
150×750 |
120 |
18-48 |
8-25.6 |
15 |
3.5 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
16-51.2 |
37/30 |
6.5 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37 |
7.7 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
20-104 |
75 |
11 |
PEX900×1200Ⅱ |
900×1200 |
750 |
100-200 |
144-304 |
132 |
45.8 |
V型腔鄂式破碎机(PEV )技术参数表 Technical Date
型号 |
PEV40 |
PEV42 |
PEV55 |
|
下料口 |
mm |
1000*625 |
1070*760 |
1400*760 |
最大功率 |
kw |
90 |
110 |
150 |
hp |
120 |
150 |
200 |
|
滑轮聚晶金刚石 |
mm |
11908SPC |
1390 10SPC |
1645 10SPC |
最重的电梯 |
kgs |
5525 |
8020 |
9700 |
1bs |
12175 |
17670 |
21370 |
|
总重量 |
kgs |
11820 |
17300 |
23000 |
1bs |
26050 |
38130 |
50700 |
|
最大转速 |
|
280 |
250 |
250 |
型号 |
单位 mm |
近似吞吐量计量吨/小时,和短期吨/小时1吨[mtph ] = 22041 1 shprtnt[ mtph ] = 20001b |
||||||||||||
封闭环境(mm) |
||||||||||||||
50 |
63 |
75 |
88 |
100 |
115 |
125 |
140 |
150 |
165 |
175 |
200 |
225 |
||
PEV40 |
Mtph |
85-95 |
105-120 |
125-146 |
150-165 |
170-190 |
200-220 |
220-240 |
250-275 |
260-290 |
285-325 |
|
|
|
Stph |
95-105 |
115-135 |
140-160 |
165-185 |
190-215 |
225-245 |
245-260 |
275-310 |
295-325 |
320-365 |
|
|
|
|
PEV42 |
Mtph |
|
|
135-160 |
165-185 |
190-210 |
220-240 |
240-265 |
275-305 |
290-320 |
315-355 |
355-380 |
390-430 |
|
Stph |
|
|
155-175 |
180-205 |
210-235 |
245-270 |
270-295 |
205-340 |
325-360 |
355-400 |
375-425 |
435-480 |
|
|
PEV55 |
Mtph |
|
|
|
230-255 |
265-295 |
310-340 |
340-370 |
380-425 |
405-450 |
440-500 |
470-530 |
545-605 |
610-680 |
Stph |
|
|
|
255-290 |
295-330 |
345-380 |
380-410 |
430-475 |
455-500 |
495-560 |
525-595 |
610-675 |
685-760 |
