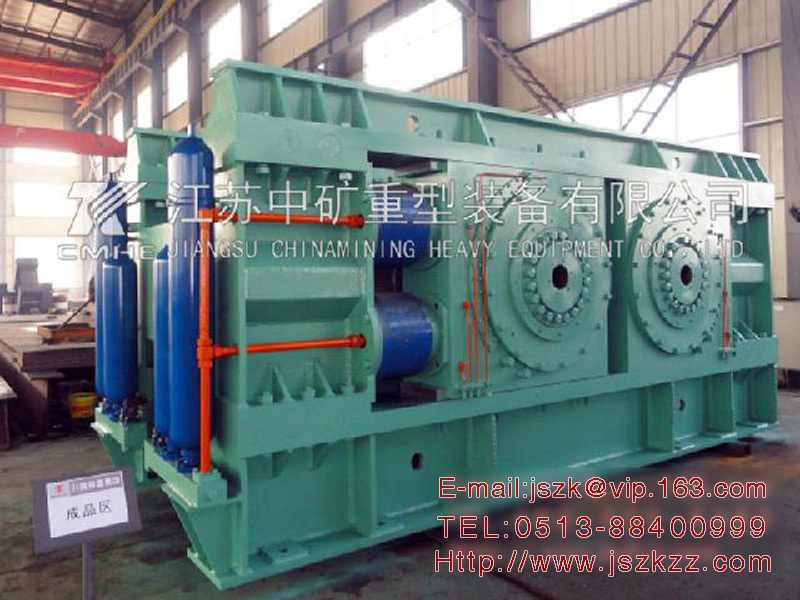

辊压机

辊压机是本公司承接的新型水泥节能粉磨设备，能全部或部分替代能耗高的球磨机系统，并且具有耗材少、噪音低的功能，适用于新厂建设，也可用于老厂技术改造。选用该设备后，可使球磨机系统产量提高40—100%,经过挤压后的物料料饼中0.08mm细料占20-55%,小于2mm占65-85%,小颗粒的内部结构因受挤压而充满许多微小裂纹，易磨性大为进步。辊面采用热堆焊，耐磨层维修更为方便。　　本公司多年来不断追求改进、创新，已形成了一套成熟的设备技术和完整的粉磨工艺，主要特点：　　1、辑面堆焊采用进口焊机和先进的焊条及工艺技术进行焊接，使用寿命大幅度提高。　　2、利用航空技术生产的液压油缸性能可靠。　　3、自控系统采用触摸屏动态显示。自动控制配有专家诊断系统，故障自动解除，控制可靠。　　4、配套打散分级机，V型分级机和回转式打散分级机。分选率达90%。　　5、免费提供技术服务和工艺设计。　　Therollsqueezerisanewtypeenergy-savingcementpowdermillfirstlymanufacturedbyourcompany.Itcancompletelyorpartiallyreplacetheballmillwithhighenergyconsumption.Itisfeaturedbyfewconsumablesandlownoise.Itcanbeusedfornewfactoryconstructionandforoldfactorytechnicalreconstruction.Thisequipmentcanhelptheballmillsystemimprovetheoutputby40—100%.　　Thesqueezedmaterialpiehas20~55%tinyparticlesof0.08mmand65—85%particlessmallerthan2mm.Thesmallparticlesarefulloftinycracksforbeingsqueezed,sothegrindabilityisgreatlyimproved.　　Therollsurfaceisweldedinthehotbuild-upwaysothatthemaintenanceofthewear-resistantlayerismoreconvenient.　　Ourcompanyhasbeenpursuingreformandinnovationforyears,andhasformedasetofmaturetechnologiesandcompletegrindingtechniques.Themaincharacteristicsareasfollows:　　1.Thebuild-upweldingontherollsurfaceisdonebytheimportedwelderandwiththeinternationallyadvancedwear-resistantweldingrodsandtechniques.Theservicelifeincreasesgreatly.　　2.Thehydrauliccylinderproducedbyusingaeronauticaltechnologyhasareliableperformance.　　3.Theautomaticcontrolsystemhasatouchscreen.Ithasaprofessionaldiagnosissystemsothatthetroublecanberemovedautomatically.Thecontrolisreliable. 　　辊压机技术参数Techniqueparameter辊压机技术参数Technicalparameter型号Model辊径Diameter辊宽Width最大喂料粒度Maxmaterialgranularity最高喂料温度Maxmaterialtemperature预粉碎能力Expectedgrindingcapacity主电动机Mainmotor整机重量UnitWeight熟料Clinker(t/h)生料Rawmaterial(t/h)型号Model功率Power（KW）电压Voltage(v)G200-180Φ2000180080≤100920~1150920~1250YRKK6301800x26000〜10000340G200-120Φ2000120075≤100730~850750~1000YRKK5601400x2300G180-120Φ1800120075≤100650~760660~780YRKK5601250x2225G170-100Φ1700100070≤100580~670600~680YRKK500900x2190G160-140Φ1600140065≤100600~720650~760YRKK5601120x2210G150-100ΦI50010060≤150460~500485~520YRKK500710x2178G140-80Φ140080055≤150320~360330~390YRKK560630x2115G140-70Φ140070055≤150240~300260~320YRKK500500x2110G120-50Φ120050050≤150110~175175~190Y355L250x238065G120-45Φ120045050≤15095~150110~175Y355L220x262G100-35Φ100035045≤8045~6050~70Y355M185x230G100-30Φ100030045≤8040~5045~65Y355M160x230G80-25Φ80025040≤8020~3025~35Y315S90x223 　　工作原理　　辊压机是根据料床粉磨原理设计而成，其主要特征是：高压、满速、满料、料床粉碎。辊压机由两个相向同步转动的挤压辊组成，一个为固定辊，一个为活动辊。　　物料从两辊上方给入，被挤压辊连续带入辊间，受到100-150MPa的高压作用后，变成密实的料饼从机下排出。排出的料饼，除含有比例的细粒成品外。在非成品颗粒的内部，产生大量裂纹，改善了物料的易磨性，且在进一步粉碎过程中，可较大地降低粉磨能耗。　　物料通过磨辊主要分为三个阶段：满料密集、层压粉碎、结团排料阶段。　　主要结构　　辊压机由机架、两个辊系、传动装置、扭矩支承、辊罩、进料装置、液压(加压)系统、主轴承润滑系统、干油润滑系统、电气系统等部份组成。

关键词：

重型机械 | 电站辅机 | 工程总包 | 矿山机械 | 环保设备

所属分类：

服务热线：

辊压机

　　本公司多年来不断追求改进、创新，已形成了一套成熟的设备技术和完整的粉磨工艺，主要特点：

　　1、辑面堆焊采用进口焊机和先进的焊条及工艺技术进行焊接，使用寿命大幅度提高。

　　2、利用航空技术生产的液压油缸性能可靠。

　　3、自控系统采用触摸屏动态显示。自动控制配有专家诊断系统，故障自动解除，控制可靠。

　　4、配套打散分级机，V型分级机和回转式打散分级机。分选率达90%。

　　5、免费提供技术服务和工艺设计。

　　The roll squeezer is a new type energy-saving cement powder mill firstly manufactured by our company. It can completely or partially replace the ball mill with high energy consumption. It is featured by few consumables and low noise. It can be used for new factory construction and for old factory technical reconstruction. This equipment can help the ball mill system improve the output by 40—100%.

　　The squeezed material pie has 20~55% tiny particles of 0.08mm and 65—85% particles smaller than 2mm. The small particles are full of tiny cracks for being squeezed, so the grindability is greatly improved.

　　The roll surface is welded in the hot build-up way so that the maintenance of the wear-resistant layer is more convenient.

　　Our company has been pursuing reform and innovation for years, and has formed a set of mature technologies and complete grinding techniques. The main characteristics are as follows:

　　1. The build-up welding on the roll surface is done by the imported welder and with the internationally advanced wear-resistant welding rods and techniques. The service life increases greatly.

　　2.The hydraulic cylinder produced by using aeronautical technology has a reliable performance.

　　3.The automatic control system has a touch screen. It has a professional diagnosis system so that the trouble can be removed automatically. The control is reliable.

　　辊压机技术参数 Technique parameter

辊压机技术参数Technical parameter
型号 Model	辊径 Diameter	辊宽 Width	最大喂料粒度 Max material granularity	最高喂料温度 Max material temperature	预粉碎能力 Expected grinding capacity		主电动机Main motor			整机重量 Unit Weight
型号 Model	辊径 Diameter	辊宽 Width	最大喂料粒度 Max material granularity	最高喂料温度 Max material temperature	熟料 Clinker(t/h)	生料Raw material (t/h)	型号 Model	功率Power（KW）	电压Voltage (v)	整机重量 Unit Weight
G200-180	Φ2000	1800	80	≤100	920~1150	920 ~1250	YRKK630	1800x2	6000〜10000	340
G200-120	Φ2000	1200	75	≤100	730~850	750~1000	YRKK560	1400x2		300
G180-120	Φ1800	1200	75	≤100	650~760	660~780	YRKK560	1250x2		225
G170-100	Φ1700	1000	70	≤100	580~670	600~680	YRKK500	900x2		190
G160-140	Φ1600	1400	65	≤100	600~720	650~760	YRKK560	1120x2		210
G150-100	ΦI 500	100	60	≤150	460~500	485~520	YRKK500	710x2		178
G140-80	Φ1400	800	55	≤150	320~360	330~390	YRKK560	630x2		115
G140-70	Φ1400	700	55	≤150	240~300	260~320	YRKK500	500x2		110
G120-50	Φ1200	500	50	≤150	110~175	175~190	Y355L	250x2	380	65
G120-45	Φ1200	450	50	≤150	95~150	110~175	Y355L	220x2		62
G100-35	Φ1000	350	45	≤80	45~60	50 ~ 70	Y355M	185x2		30
G100-30	Φ1000	300	45	≤80	40~50	45 ~65	Y355M	160x2		30
G80-25	Φ800	250	40	≤80	20~30	25 ~ 35	Y315S	90x2		23
